iC-PV    Battery-Buffered Hall Multiturn Encoder

  • Gearless revolution counting
  • Multiturn encoders
  • Absolute end-of-shaft encoders
  • Period counters
  • Metering applications
  • Integrated Hall sensors with automatic gain and offset control
  • Current consumption of only 2 μA to 30 μA in typ. applications
  • Tracking speed of up to 120 000 rpm
  • Configurable multiturn counting up to 40 bits
  • Octal encoder mode (singleturn) with 3-bit parallel output
  • Shift register input for singleturn position
  • Shift register output of synchronized MT/ST position
  • SSI multiturn data output with error, parity and sync. bits
  • Adjustable multiturn preset value
  • Pin-triggered preset and boot-up from external EEPROM
  • I2C multi-master interface to read EEPROM
  • Supply voltage range of 3.0 V to 5.5 V
  • Integrated supply switching to backup battery
  • Error output on overspeed, low battery and CRC failure

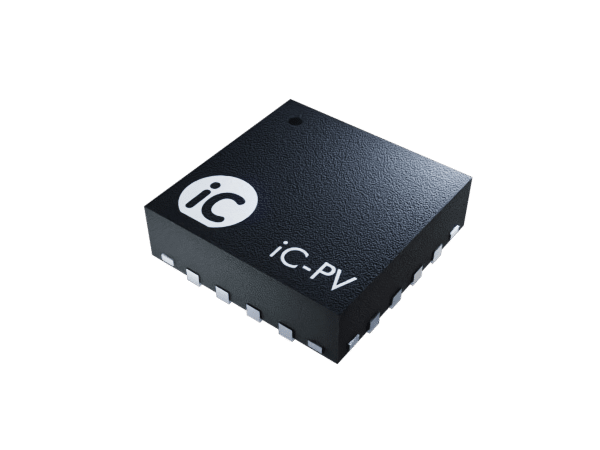

  • Space-saving 16-pin QFN package
    QFN16 3x3x09
