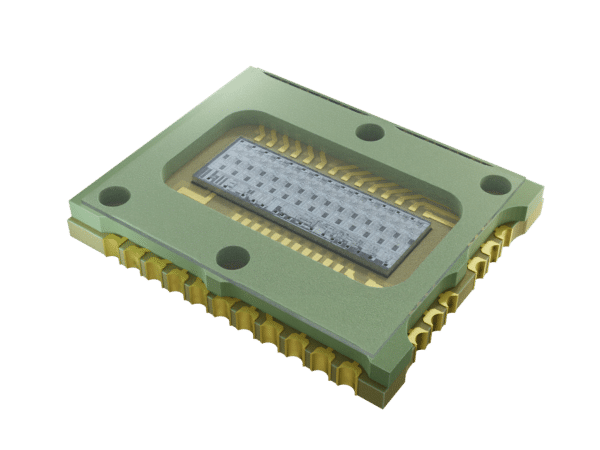

iC-WG    14-Bit Differential Scanning Optical Encoder IC

  • Optical position decoding with 14 bits based on the principle of differential scanning
  • Operates from a single 4.5 to 20 V supply
  • Excellent matching, high reliability
  • Differential scanning eliminates dark current effects (half-track width: 300 µm)
  • Comparators with precise photocurrent related hysteresis
  • Short-circuit-proof CMOS-/LSTTL-compatible outputs
  • Adjustable LED-current control for constant photosensor currents
  • Control monitoring with alarm output
  • Operates from 4.5 to 20 V supply voltage
  • Options: extended temperature range of -30 to 110 °C, customised COB, reticle assembly and code disc available
