iC-WKP    P-Type CW Laser Diode Driver, Optimized for P-Type Laser Diodes

Applications
  • Laser diode modules
  • Laser diode pointers
  • Pilot lasers
  • Laser levels
  • Barcode readers
  • Distance measuring sensors
Features
  • Optimised for P-type laser diodes (case grounded)
  • CW operation up to 350 mA from 3 to 15 V supply voltage
  • Rapid soft start after power-on
  • Simple power adjustment via an external resistor
  • Control loop accuracy better than 2% with changes in temperature, supply voltage and load current
  • Integrated reverse polarity protection for the iC and laser diode
  • Strong suppression of transients with small external capacitors; integrated flyback path
  • Permanent shutdown with excessive chip temperature and overcurrent (i.e. if the laser diode is damaged or the feedback current path fails)
  • Second feedback input MDA also permits the operation of N-type laser diodes
  • Modulation via the feedback inputs possible
  • Wide monitor current range from 2.5 ľA to 6.25 mA
Packages

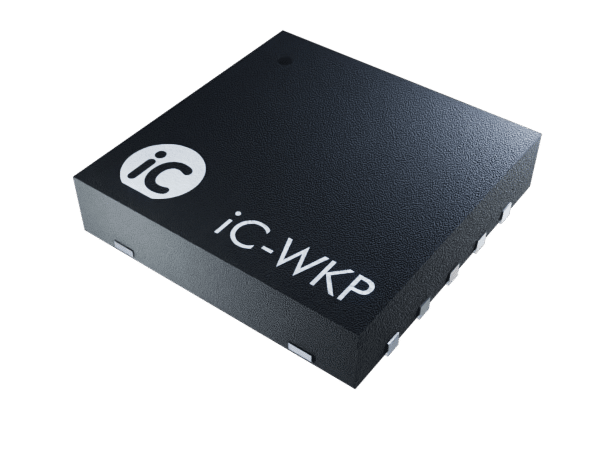

    DFN10
    SO8-TP
