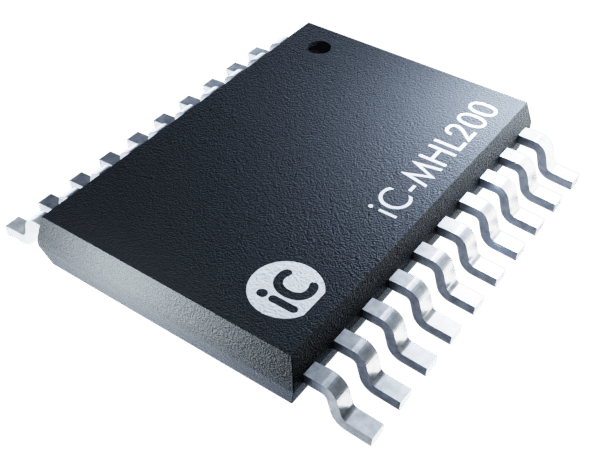

iC-MHL200    12-Bit Linear / Rotary Position Hall Encoder

  • Motion control
  • Linear position encoders
  • Incremental off-axis rotary encoders
  • Realtime system for linear speed up to 8 m/s at full resolution
  • Absolute position within the magnetic period of 4mm
  • 12-bit interpolation w. 4096 increments, resolution better 1μm
  • Automatic signal offset compensation
  • Automatic amplitude control for optimum operating point
  • Programmable features: interpolation factor, hysteresis, minimum phase distance, zero position and code direction
  • Electronic index generation with multi purpose enable input
  • RS422-compatible A/B/Z outputs for encoder quadrature signals with up to 8MHz edge rate
  • Serial I/O interface for high-speed data output (BiSS/SSI) and configuration (BiSS)
  • Zener-Zap ROM for non-volatile setup and OEM data
  • Signal monitoring: loss of signal, excessive frequency
  • Single 5 V supply
  • Extended temperature range of -40 to +125 C
