iC-ME    2-Channel Light-Grid Pulse Receiver

Applications
  • Light curtains
  • Light barriers
  • Electro-sensitive protective equipment (ESPE)
Features
  • Dual photo diode inputs with photoelectric amplifier
  • Built-in bandpass filter with 300 kHz center frequency
  • Differential current-signal output with open drain low-side drivers
  • Nonlinear transfer function results in wide dynamic range of 100 nA to 1.5 mA for pulsed photocurrents
  • Fast flash recovery time of max. 30 μs
  • Recovery time below 10 μs for excessive photocurrents of up to 1.8 mA
  • Shift register and control logic
  • Compatible to CMOS levels
  • Single 5 V supply
  • Low standby current; circuit activation by input data
  • Power-down reset
  • ESD protection
  • FMEA driven circuit and layout topology
  • Suited for high-risk applications according to IEC 61496-1
  • Option: extended temperature range of -25 to 85 C
Packages

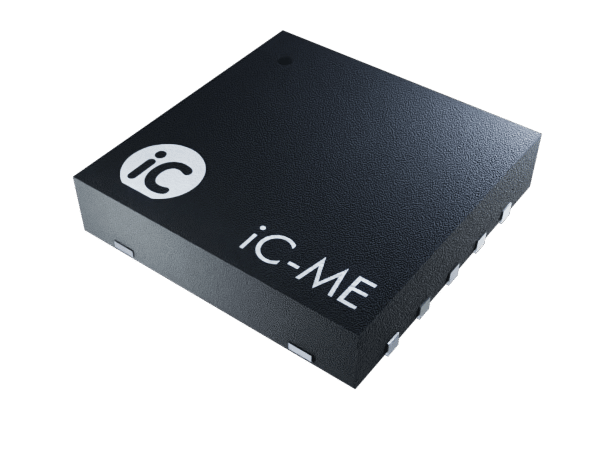

    DFN10
