iC-HGP    200 MHz High-Side Laser Switch for up to 9 A (pulsed) - (new)

Applications
  • Pump lasers
  • Laser projection
  • Laser TV
  • Data transmission
  • TOF camera lighting
  • LIDAR lighting
Features
  • Six channel laser switch from CW up to 200 MHz
  • CW operation with up to 500mA per channel
  • Pulsed operation with up to 1.5 A per channel
  • Spike-free switching of the laser current
  • 6 x 1 channels with TTL inputs
  • 3 x 2 channels with LVDS inputs
  • Operates as six independent voltage-controlled current sources
  • Laser supplies are 12 V capable for blue/green laser diodes
  • Fast and slow switching mode
  • Simple current control at pins CIx
  • CIx voltage < 3 V for full CW current
  • Wide supply voltage range from 3 to 5.5 V
  • All channels can be paralleled for up to 3 A CW and 9 A pulsed operation
  • Multiple iC-HGP can be connected in parallel for higher currents
  • Open drain error output
  • Thermal shutdown
Packages

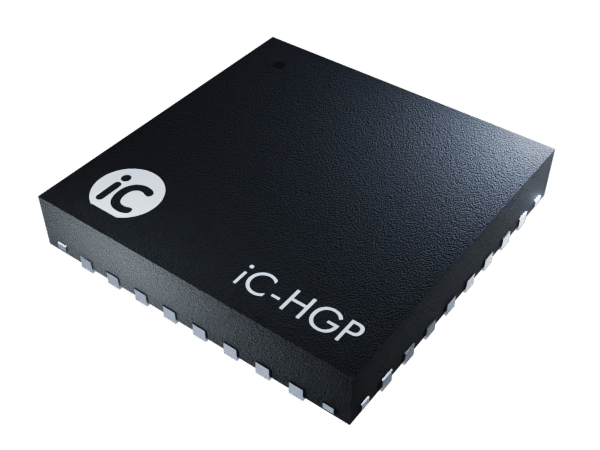

    QFN32_5x5
